VLC (VERTICAL LINE CARD) CONNECTORS

Yamaichi’s VLC Connector Platform is engineered to meet the growing demands of AI, machine learning, and cloud-scale computing. Offering transmission performance up to 3.2Tbps and optimized for 224G signaling, VLC connectors deliver exceptional signal integrity while reducing PCB routing distances to less than 5.2 inches. The result is lower latency, improved cooling efficiency, reduced power consumption, and a more cost-effective system architecture. With support for flexible cage configurations and future-ready network designs, VLC connectors provide the foundation for scalable, high-density computing environments.

VLC-OSFP

Product Features:

  • SMT Vertical-Type Connector Shorter ASIC-to-Port Distance: within 5.2 inches
  • Eliminate Internal Cables & System Complexity
  • Optimized Airflow & Thermal Design
  • Capable Liquid Cooling
  • Transmission Performance:
    • VLC OSFP-XD :  3.2Tbps
    • VLC-OSFP :  1.6Tbps
    • VLC-OSFP-RHS : 1.6Tbps
  • Simplified & Symmetric Connector Structure Results in Efficient SI Performance for 224G
  • Capability to Utilize Other I/O Interface Types

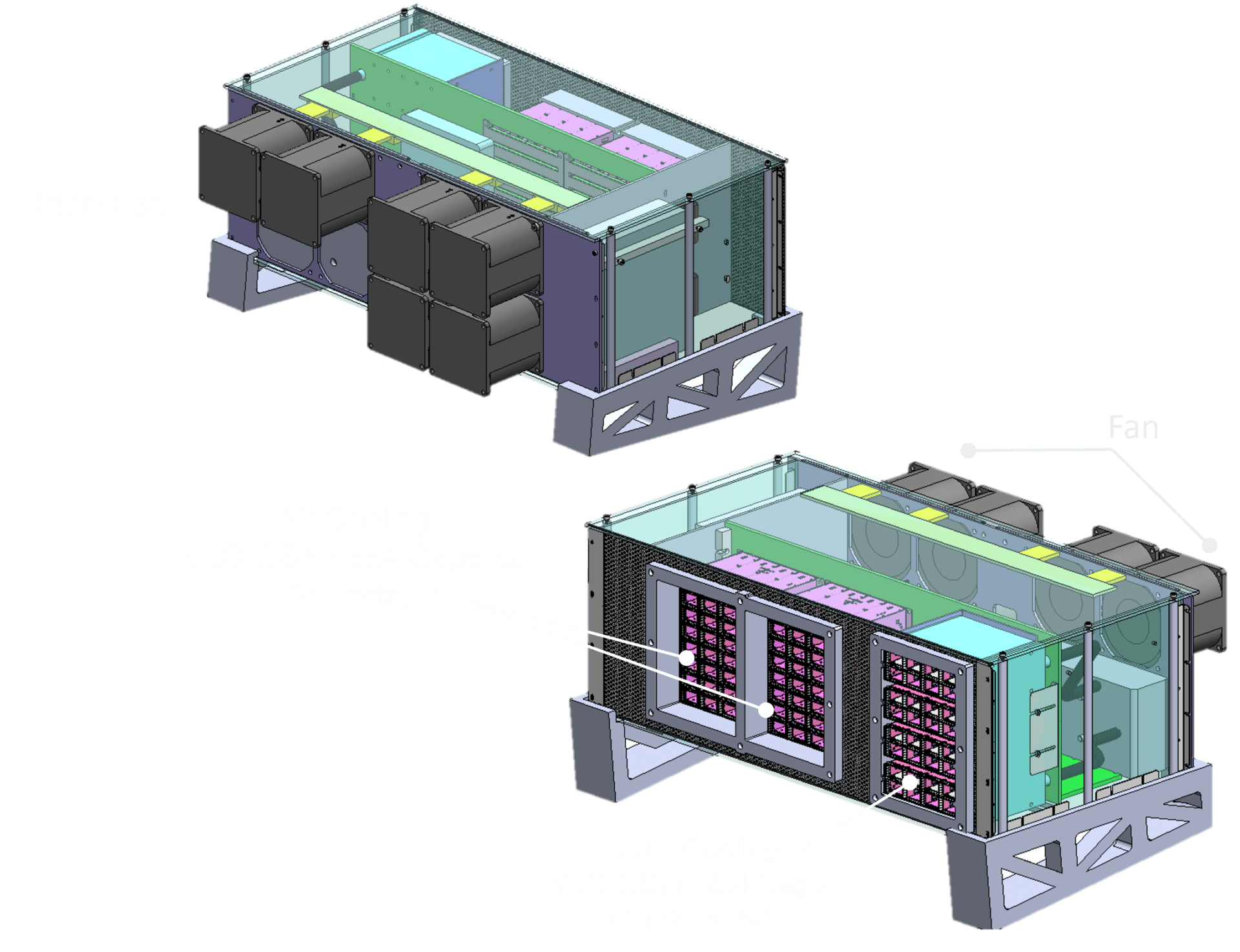

  • Capable to Support Custom Cage Configuration

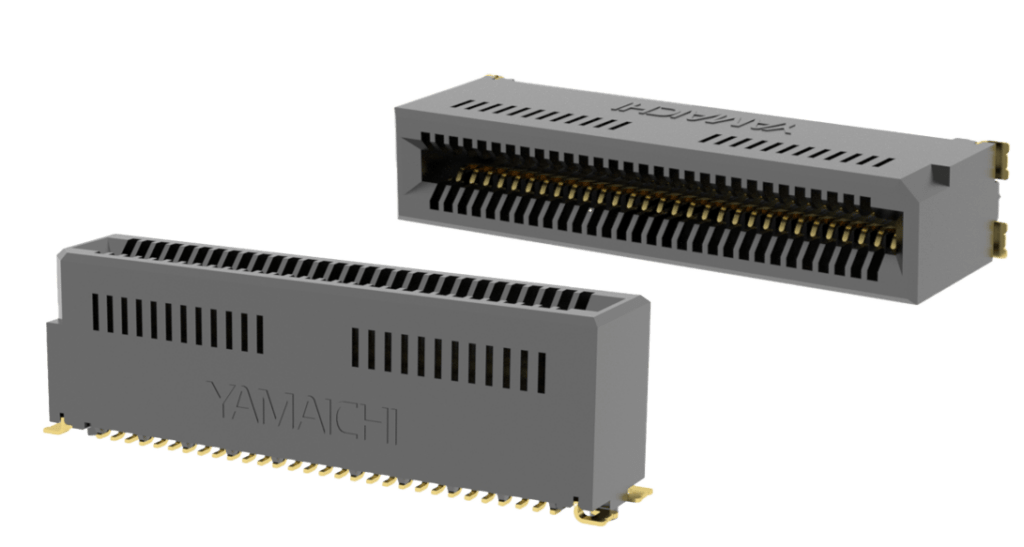

VLC-OSFP Connector

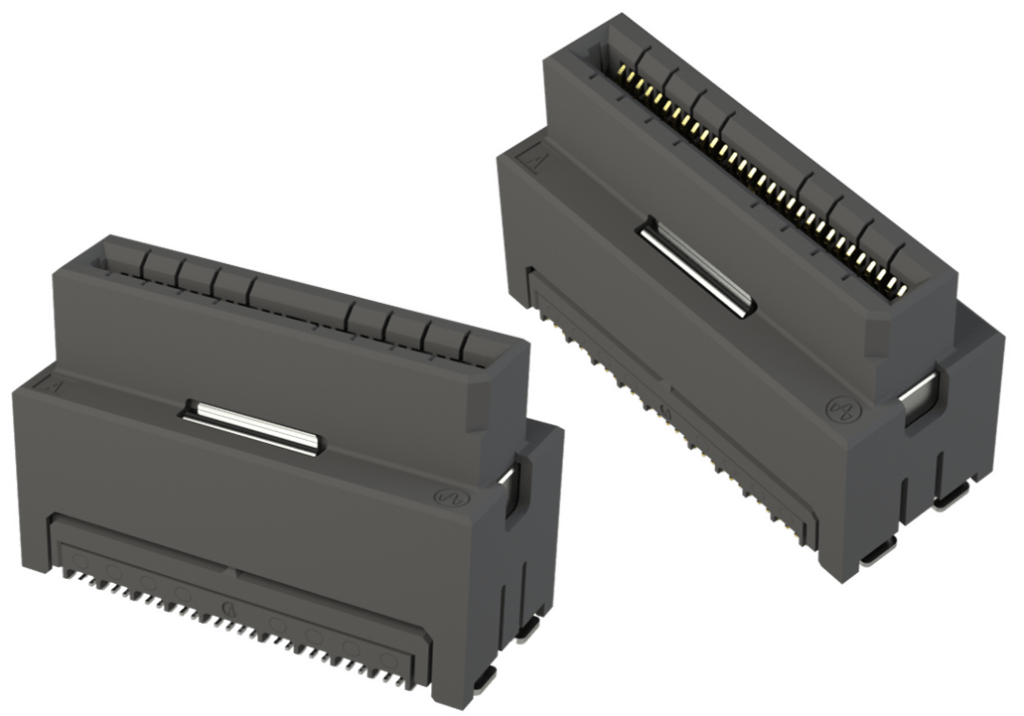

VLC OSFP-XD Connector
