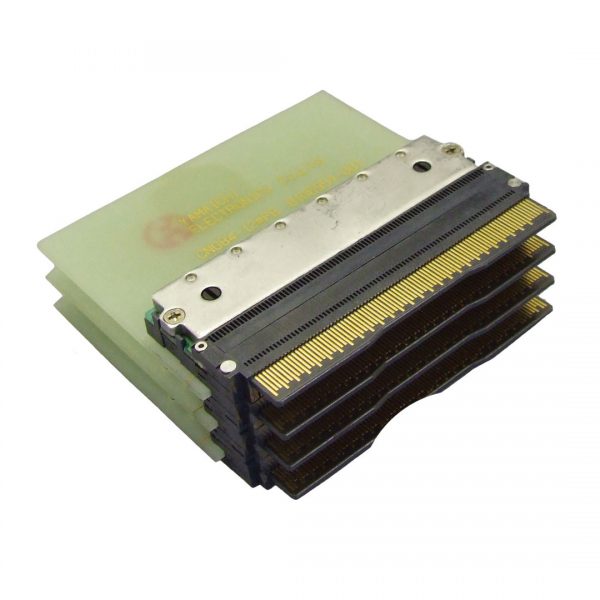

CN084 Series MCH Plug Connector (Micro TCA Carrier Hab)
Mating with the CN080 to achieve high-speed transmission at 12.5 Gbps.
Designed to allow low insertion force, thus ensuring the insertion and extraction of 680 pins simultaneously. Provided with a step on the plug tip, thus distributing the peak of insertion to two stages. A mold product making strict dimensional control, including thickness control.
MCH module thickness conversion. Supporting 2.0-mm thickness (under planning) as well as 1.6-mm (standard) thickness.
A structure to absorb the mounting tolerance between MCH modules.
Achieving a wide variety of combinations with high flexibility.
