High-Temp. Backplane connectors

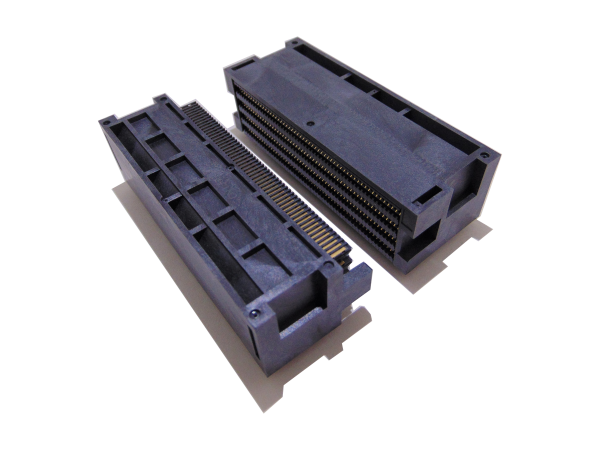

CN136 Series High-Temperature Backplane connectors

Designed for Burn-In chamber PCB connection and harsh operating environment

High operating temp. up to 180ºC

432pins = 200 Signal + 200 GND + 32 POW pins

Impedance 50 Ohm +/-10%

Supports power up to 1.0A max/per pin

1.3mm pitch, 8 rows, T/H terminals

Low insertion force design with mating indentations feature
