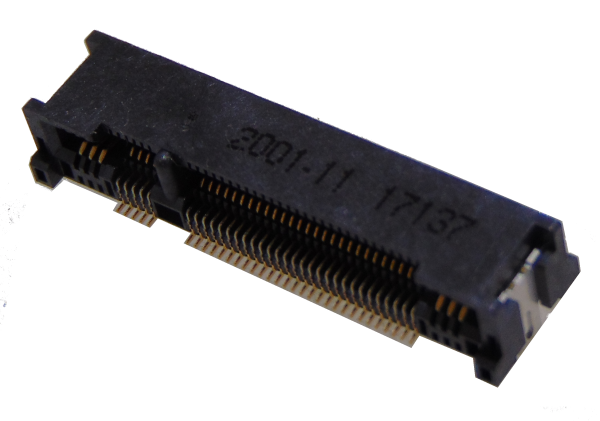

Automotive Grade M.2. (NGFF) Card Edge Module Connector

CNU027 Series Automotive Grade M.2. (NGFF) Card Edge Module connector

Supports high-speed signals such as USB3.1 Gen2.0 and PCIe Gen4.0 targets

Supports M.2. Module thickness = 1.60mm

Pin count = 67 M.2. Module pins + 6 POW pins

Side-Power pins offer strong retention force for card edge module and optional current transmission support

Contact current capacity:

• Signal pins: 0.5A/per pin
• POW pins: 2.5A/per pin
